FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes

Model Number : FT-36PGM555

Brand Name : FUTENG

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Certification : CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 8000 0000

Delivery Time : 15-30 days/Negotiable

Packaging Details : Standard Export Carton & Customzied

Continuous Current(A) : about 430mA-2500mA

Efficiency : 65%-90%

Rated Power : 1-50w

Rated voltage : 3-48V, 6v/12v/24v

Speed Rpm : 2-1500rpm

Torque : 18-15000 0g.cm, 80/95/100/90(g.cm)

Type : Gear Motor

Usage : Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty : 3 months ~ 1 year

Geared motor model : FT-36PGM555

Gear box size : 36mm

Rotating speed : 12000/12900/10200/5000(rpm)

Current : 2500/850/430/540(mA)

Output : 15/10.2/10.32/12.96(w)

Name : DC Planetary Gear Motor

Contact Now

FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes

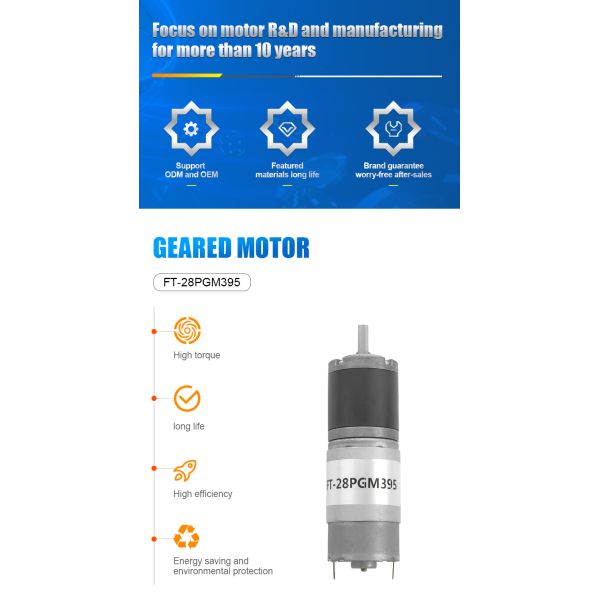

FT MOTOR Geared motor model: FT-28PGM395 Gearbox diameter: Ø28mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

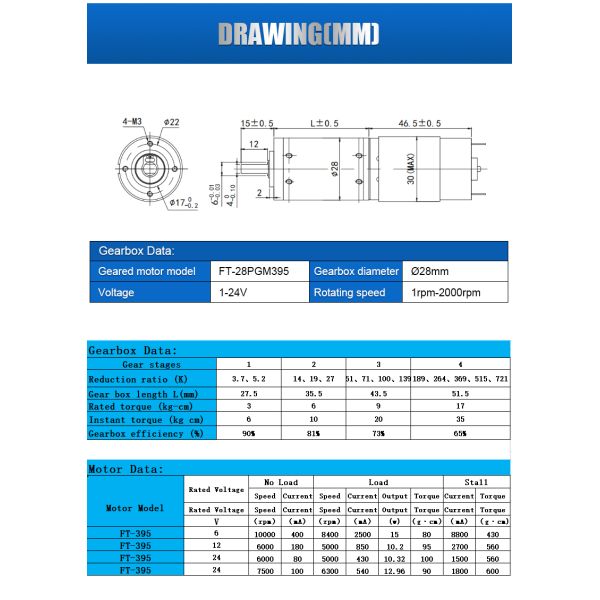

Gearbox Data:




Gear stage
1
2
3
4
Reduction ratio (K)
3.7,5.2
14,19,27
51,71,100,139
189,264,369,515,721
Gear box length L(mm)
27.5
35.5
43.5
51.5
Rated torque (kg·cm)
3
6
9
17
Instant torque (kg·cm)
6
10
20
35
Gearbox efficiency (%)
90%
81%
73%
65%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-370
6
10000
400
8400
2500
15
80
8800
430
FT-370
12
6000
180
5000
850
10.2
95
2700
560
FT-370
24
6000
80
5000
430
10.32
100
1500
560
FT-370
24
7500
100
6300
540
12.96
90
1800
600
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
FT-36PGM555 High Torque Muted Gear Electric Motor High Speed 2-1500rpm 6V 12v 24V DC Planetary Gear Motor for Clearing Brushes
