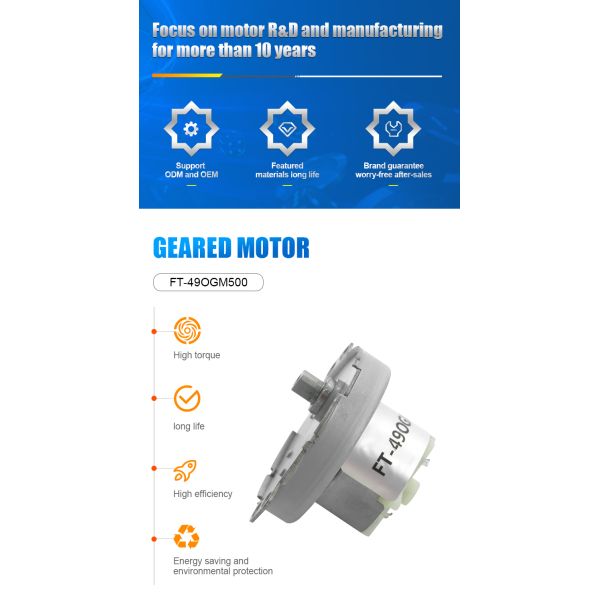

FT-49OGM500 DC3-24V 2-20rpm Smart Pet Feeder Motor in Korean

Name: FT49OGM500 DC324V 220rpm Smart Pet Feeder Motor in Korean
Brand: FUTENG
Price: 1 USD

Quality FT-49OGM500 DC3-24V 2-20rpm Smart Pet Feeder Motor in Korean wholesale

Model Number : FT-49OGM500

Brand Name : FUTENG

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Certification : CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Packaging Details : Standard Export Carton & Customzied

Delivery Time : 15-30 days/Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 8000 0000

Continuous Current(A) : about 430mA-2500mA

Efficiency : 65%-90%

Commutation : Brush

Construction : Permanent Magnet

Rated Power : 1-48w

Rated voltage : 3-24v, 3v/5v/6v/12v

Speed Rpm : 2rpm-80rpm

Torque : 1-60kgf.cm, 11.6/12.6/12/13.5(g.cm)

Type : Gear Motor

Usage : Boat, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty : 3 months ~ 1 year

Geared motor model : FT-49OGM500

Gear box size : 49mm

Rotating speed : 2700/3100/2700/4000(rpm)

Current : 20/26/30/22(mA)

Output : 0.26/0.27/0.27/0.29(w)

Name : DC Spur Gear Motor

Contact Now

FT MOTOR

FT MOTOR Geared motor model: FT-49OGM500 Gearbox Diameter: Ø49mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	4	5
Reduction ratio (K)	45,60,80,100	150,201,309,426,530
Gear box length L(mm)	10.5	10.5
Rated torque (kg·cm)	2	4
Instant torque (kg·cm)	5	7
Gearbox efficiency (%)	65%	59%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-500	6	2700	20	2180	84	0.26	11.6	350	60
FT-500	5	3100	26	2540	120	0.27	12.6	540	70
FT-500	3	2700	30	2230	160	0.27	12	680	60
FT-500	12	4000	22	3200	125	0.29	13.5	460	75

FT-49OGM500 DC3-24V 2-20rpm Smart Pet Feeder Motor in Korean
