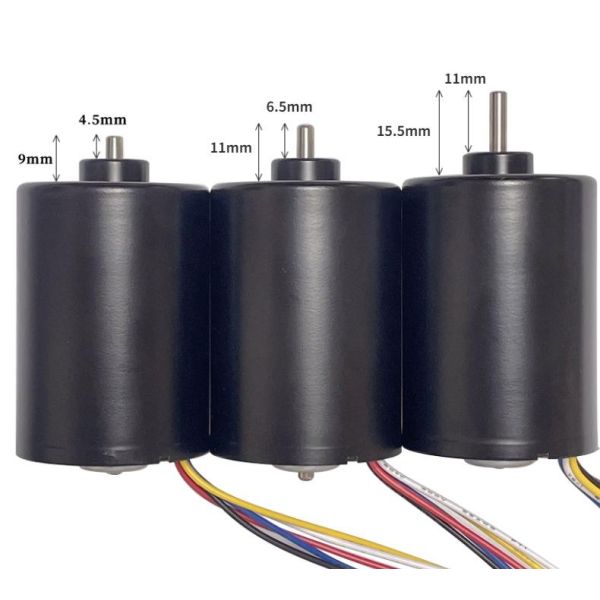

Micro 3650 Brushless Motor , 42mm High Efficiency Brushless DC Motor

long life span high efficiency BLDC3650 brushless dc electric motor

NOTICE :

The yellow and green wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.

Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.

Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)

Red Wire - positive power supply of motor(+)

White Wire - negative power supply of motor(-)

Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrongly; voltage is3.3-5V)

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrongly; voltage is 3.3-5V)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

Green Wire - signal feedback (11 signals per motor turns a circle)
